13A Rated Amphenol Rectangular Socket AT04-6P-PM05 Male Receptacle With IP67 Protection For Auto Electrical Assembly

13A Rated Amphenol Rectangular Socket AT04-6P-PM05 Male Receptacle With IP67 Protection For Auto Electrical Assembly

Description

The AT04-6P-PM05 is an Amphenol automotive male receptacle rectangular socket with IP67 ingress protection under mated status across full operating temperature range from -55°C to 125°C. It features stable electrical performance, reliable waterproof & dustproof capability and consistent contact conductivity, which make it ideal for automotive wiring harness assembly applications. This 6-position connector adopts #16 specification contact diameter, rated for 13A at 40°C and 250V working voltage, compatible with wire gauge 0.34~2.5. The AT04-6P-PM05 connector is available in standard bulk packaging.

Features

 6 Positions Automotive Male Receptacle Rectangular Socket, #16 Contact Diameter
 IP67 Ingress Protection When Mated
 Rated Current: 13A @40°C, Rated Voltage: 250V
 Wide Operating Temperature Range from -55°C to +125°C, applicable for wire gauge 0.34~2.5
 Totally Lead-Free; RoHS Compliant
 Standard Bulk Packing
 Totally Lead-Free & Fully RoHS Compliant
 Halogen and Antimony Free. “Green” Device

Applications

 Charger
 Voltage Adapter
 Switching Power Supply
 Graphic Card
 Precision Voltage Reference

ORIGINAL

Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.

PRICE

We provide a variety of quotation channels, and sign the order contract after negotiation.

TRANSACTION

After communication and agreement, we will guide you to arrange payment.

DELIVERY CYCLE

Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.

TRANSPORT

We will choose the appropriate transportation mode according to your country.

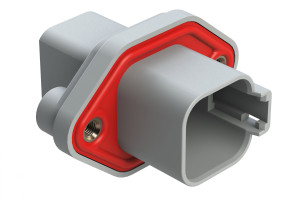

13A Rated Amphenol Rectangular Socket AT04-6P-PM05 Male Receptacle With IP67 Protection For Auto Electrical Assembly Images
